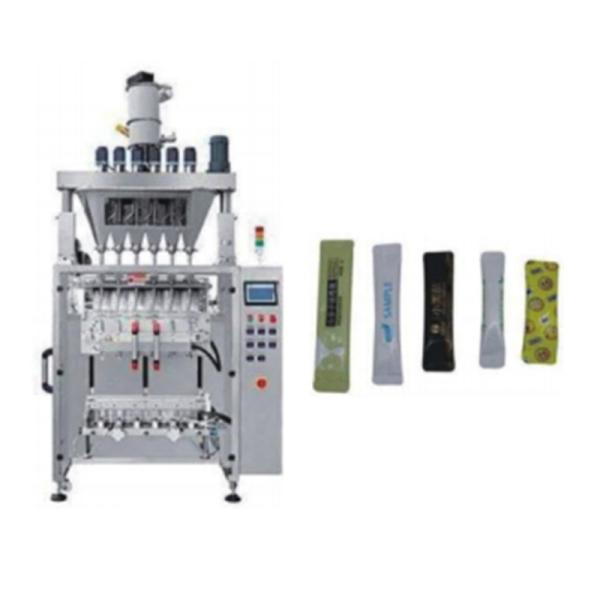

200-3000ml Vertical Powder Lapel Packaging Machine

Name: 2003000ml Vertical Powder Lapel Packaging Machine
Brand: Shandong Haotong
Price: 1 USD

Brand Name : Shandong Haotong

Model Number : SPRS-LFF

Place of Origin : Shandong Province, China

MOQ : A set

Price : Negotiable/negotiable/telegraphic

Payment Terms : Spot exchange

Supply Ability : 1 car /1 month

Delivery Time : 3 months

Bag-making length : 80-400mm

Bag-making width : 80-250mm

Film width : 520mm

Packaging speed : 5 to 50 bags per minute

Measurement range : 200-3000ml

Air pressure : 0.65mpa

Gas consumption : 0.4m³/min

Voltage : 220V 50HZ

Power : 4KW

External dimensions : Length * width * height =1150*1795*1650mm

Machine weight : 600 kilograms

Contact Now

The Chinese and English touch screen display makes the operation intuitive and simple.
●PLC computer control system, more stable operation, any parameters can be adjusted without stopping the machine.
It can store ten sets of parameters, making it more accurate to change varieties.
● The use of servo motors for pulling and touching ensures more accurate positioning.
● Independent temperature control system, with an accuracy of ±1℃.
The horizontal and vertical sealing temperatures are independently controlled, which can be well applied to various packaging materials such as composite films and PE films.
The packaging styles are diverse, including back sealing, corner insertion, continuous bag, punching, etc.
● The production of bags, sealing, packaging and date printing can be completed in one go.
The working environment is clean and quiet with low noise.

Technical parameters
Bag-making length	80-400mm
Bag-making width	80-250mm
Film width	520mm
Packaging speed	5 to 50 bags per minute
Measurement range	200-3000ml
Air pressure	0.65mpa
Gas consumption	0.4m³/min
Voltage	220V 50HZ
Power	4KW
External dimensions	Length * width * height =115017951650mm
Machine weight	600 kilograms

Technical key points
The screw metering method is controlled by a servo motor, and the precision can reach +1%.
Adjusting the product does not require any tools.
The charging head is replaceable and can be adapted to materials such as composite film and PE film.
Applicable packaging range: Suitable for powdered materials, such as milk powder, coffee powder, starch and other powder types
